MQS QM.AID

Digital Microscope with product and human inspection Quality Management at the same time

MQS QM.AID is more than a microscope

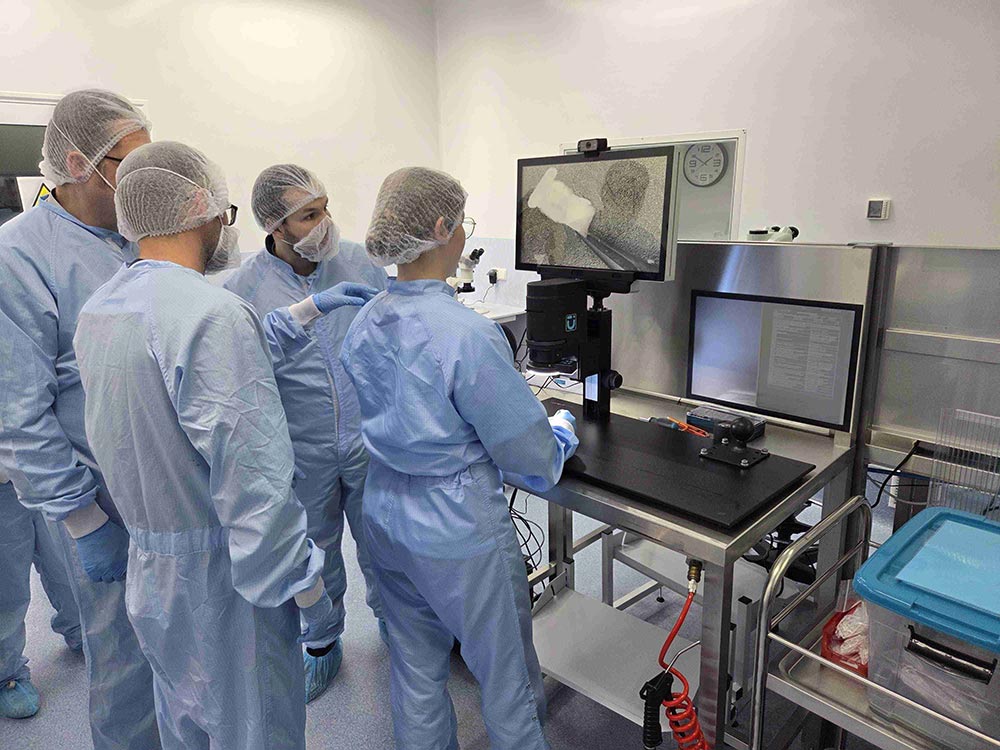

MQS QM.AID is a digital microscope, which besides its great microscopy capabilities it ensures a real-time digital data flow and the quality of both the product and the human inspection by integrating neural network-based Computer Vision and also an eye-tracker based Attention Computing technology, following a patent-pending procedure. It fulfils the required documentary and the relevant escalation if needed.

The problem

Achieving consistent quality management can be challenging due to:

1. Limited real-time visibility of product quality caused by ineffective or missing communication, indefinite roles and the related documentation.
2. Variability in human labor quality affecting consistency.
3. High labor costs from redundant quality checks and after-sales complaints.

The solution

MQS QM.AID helps microscope-based quality management operators in four ways:

1. Ergonomic and user-friendly digital microscope with excellent and customizable capabilities. (7x – 40x magnification (with the option to halve or double), FullHD or 4k, up to 200 fps)
2. The Computer Vision module preselects the parts that need more inspection and shows the operator that needs to be checked.
3. By applying Attention Computing, analyzing the gaze data of the operator MQS QM.AID makes sure that all the parts have been carefully checked. Additionally, even drowsiness can be detected. Therefore, using the Attention Benchmark and the Smart Attention Management functions each colleague can be supported to work on an optimal level, meeting the actual performance ability of the operator.
4. All is digitized and recorded in the QM.AID FactSheets in our FactBase, which enables transparent and retrievable quality processes with “unlimited” data mining opportunities and also ERP integration options.

Modular system, all can be customized to real needs.

The benefits

• Digital and easy to use: designed to be intuitive and user friendly.
• Additional embedded quality assurance: gives additional proof of quality.
• Clear responsibilities: quality information based on real-time digital database.
• Ergonomic: focusing on fine-tuned ergonomic workstations.
• Efficient working processes: computer aided, continuous process development.
